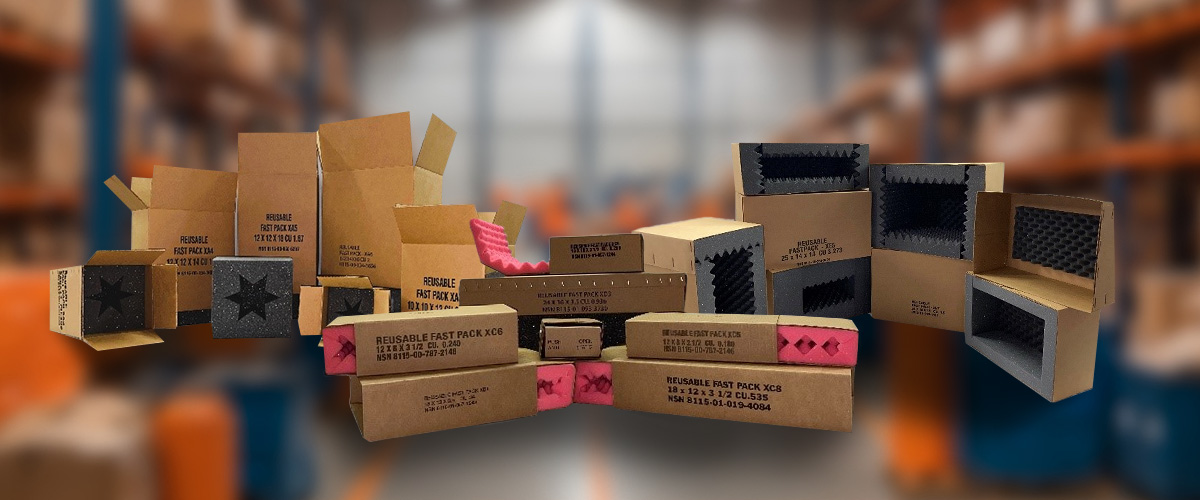

Military Packaging
General Packaging Corporation offers reliable, compliant military (MIL-SPEC) and aerospace packaging solutions backed by decades of experience. We have experience meeting a wide variety of specs, like:
- ASTM-D-5118: Single Wall and Double Wall Corrugated Containers / Fiberboard Containers
- ASTM-D-6251: Standard Specification for Lite Duty Panelboard Boxes, Wood, Cleated Plywood Crates / Shipping Boxes.
- PPP-B-1672E: Fast Packs and SPI/TPO Unit Packs
- MIL-B-2427: Military specification for boxes, ammunition packing: wood, nailed
- And More
We understand the stringent requirements of government, defense and aerospace contracts and specialize in providing packaging that meets all applicable specifications. From design to final delivery, our team ensures that every package offers a high level of compliance and workmanship backed by proven and documented processes.
The Importance of Military Packaging
Compliant packaging is crucial for military materials, supplies and equipment. Packaging must meet exact standards for safety, strength and identification. The packaging must also adequately protect tools and technology during storage, transport and deployment.
Many military operations occur in extreme conditions, and packaging must be durable enough to withstand potential adverse elements. Additionally, military packaging needs to protect sensitive equipment, like medical supplies or electronics, to ensure product functionality upon arrival.
Neglecting to meet these standards can result in consequences for the package supplier and the military entity using noncompliant supplies. Failure to meet specifications could result in product damage, military QA rejections or shipment delays.

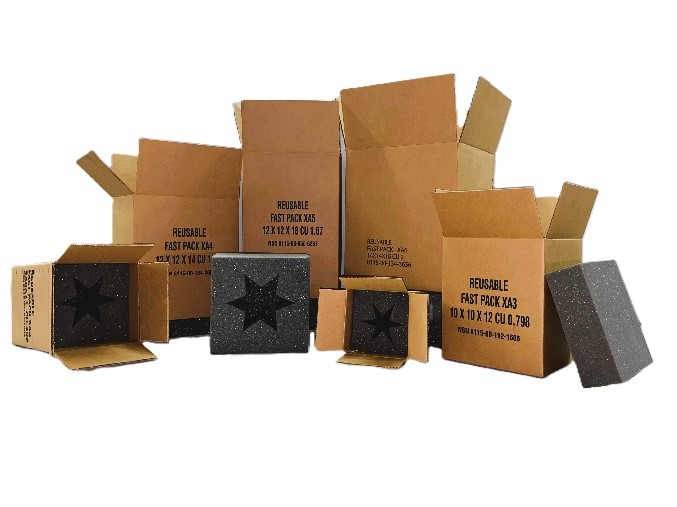

PPP-B-1672 Packaging: Compliant Type l Star Packs
PPP-B-1672 is a federal specification for cushioned, foam support shipping boxes. Compliant Type l packaging is high-strength and durable, able to support compact, symmetrical items. The cushioning components protect against compression, rough handling and impact during shipping and handling processes.
| Pack Code Number (Type I) | Container Size | National Stock Number |
|---|---|---|
| XA1 | 6 x 6 x 10 | 8115-00-192-1603 |
| XA2 | 8 x 8 x 12 | 8115-00-192-1604 |
| XA3 | 10 x 10 x 12 | 8115-00-192-1605 |
| XA4* | 12 x 12 x 14 | 8115-00-134-3655 |
| XA5* | 12 x 12 x 18 | 8115-00-050-5237 |
| XA6* | 14 x 14 x 16 | 8115-00-134-3656 |

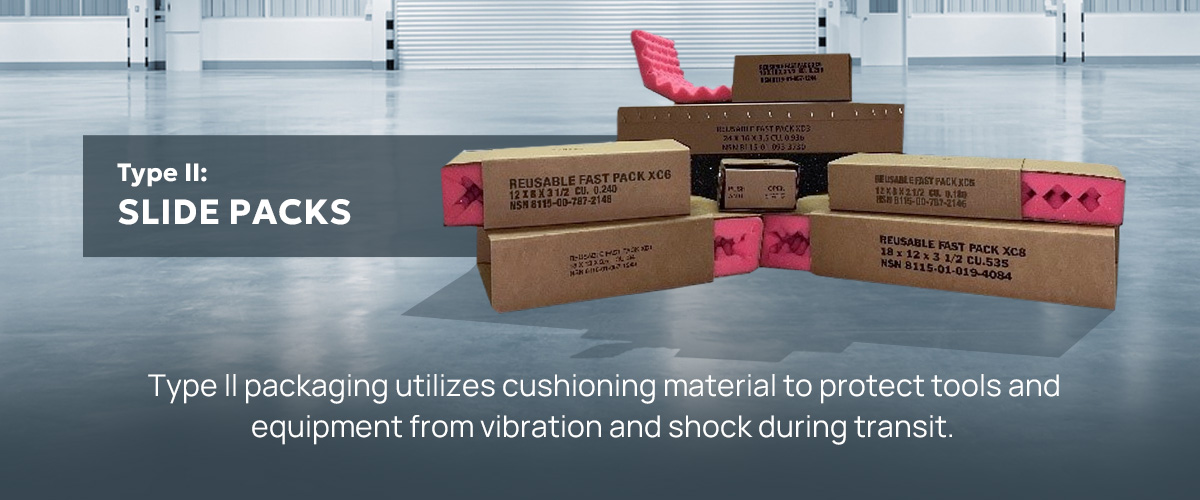

Type II: Slide Packs
Slide packs comply with PPP-B-1672 Type II specifications. This packaging is suitable for long or cylindrical items. You can use foam channels for sliding access. Type ll packaging utilizes cushioning material to protect tools and equipment from vibration and shock during transit.
| Pack Code Number (Type II) | Container Size | National Stock Number |
|---|---|---|
| XC1 | 6 x 5 x 2-1/2 | 8115-00-787-2142 |
| XC2 | 6 x 5 x 3-1/2 | 8115-00-787-2147 |
| XC3 | 9 x 6 x 2-1/2 | 8115-00-101-7647 |
| XC4 | 9 x 6 x 3-1/2 | 8115-00-101-7638 |
| XD4 | 9 x 6 x 4-1/2 | 8115-01-499-0898 |
| XC5 | 12 x 8 x 2-1/2 | 8115-00-787-2146 |
| XC6 | 12 x 8 x 3-1/2 | 8115-00-787-2148 |
| XC7 | 18 x 12 x 2-1/2 | 8115-01-019-4085 |
| XC8* | 18 x 12 x 3-1/2 | 8115-01-019-4084 |
| XC9 | 10 x 10 x 3-1/2 | 8115-01-057-1244 |
| XD1* | 13 x 13 x 3-1/2 | 8115-01-057-1243 |
| XD2 | 16 x 16 x 3-1/2 | 8115-01-057-1245 |
| XD3 | 24 x 16 x 3-1/2 | 8115-01-093-3730 |

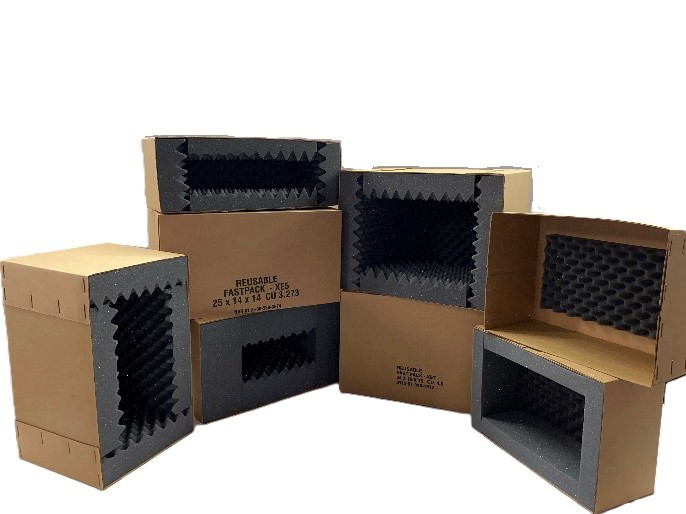

Type III: Full Telescoping Military Pack MPP-3
PPP-B-1672 Type III refers to telescoping encapsulated packs. This packaging is suitable for black box items, such as amplifiers, receiver-transmitters and power supply units. Type III packaging offers full enclosure protection with a custom foam insert, allowing it to protect oversized or delicate equipment.
| Pack Code Number (Type III) | Container Size | National Stock Number |
|---|---|---|
| XE1 | 30 x 16 x 14 | 8115-00-516-0242 |
| XE2 | 32 x 12 x 14 | 8115-00-519-1825 |
| XE3* | 24 x 14 x 14 | 8115-00-550-3558 |
| XE4 | 20 x 14 x 9 | 8115-00-516-0251 |
| XE5 | 25 x 14 x 14 | 8115-00-550-3574 |
| XE6* | 32 x 18 x 16 | 8115-01-015-1315 |
| XE7* | 24 x 18 x 16 | 8115-01-015-1312 |
| XE8 | 26 x 9 x 9 | 8115-01-015-1313 |
| XE9* | 34 x 24 x 18 | 8115-01-015-1314 |
| XF1* | 30 x 27 x 14 | 8115-01-094-6520 |
Corrugated Boxes for Military Equipment
MIL-SPEC packaging uses specific board grades. Each grade offers varying degrees of protection to match the needs of the items being shipped.
Board grade designations refer to the strength and construction of the corrugated boxes, according to PPP-B-1672:
- V3C: This board code offers moderate strength and is suitable for general, heavy-duty shipping.
- W5C: W5C is suitable for heavier or more sensitive items and offers higher strength.
- V11C: Hazardous, bulky or very heavy items require the high strength of board grade V11C.
- V13C: This code refers to packaging with ultra-high strength, suitable for fragile, hazardous or high-value items.
- V15C: V15C offers maximum strength to protect extreme duty and fragile items.
Custom Military Packaging Options
At General Packaging Corporation, you can find solutions beyond off-the-shelf kits. We offer tailored solutions for non-standard equipment. We can work with procurement officers and military contractors to ensure compliance for construction and offer barcoding, labeling and serialized packaging support.
We can also integrate electrostatic discharge (ESD) protection, moisture barriers and shock-absorbent materials to meet your specific product needs. Our International Organization for Standardization (ISO)-compliant facility and quality assurance processes ensure compliance.
General Packaging Corporation Military Packaging Solutions and Capabilities
Our team has decades of experience in military and defense sector packaging, and we make it easy to find quote support, prototypes and logistic coordination.
We have deep knowledge of PPP-B-1672 Types l, ll and III and additional specifications, including MIL-STD-2427J, ASTM-F1667 and ASTM-D6251. Our fast turnaround times enable you to meet urgent demands while ensuring quality and compliance.
We can design and build custom solutions for sensitive or oversized equipment. We use corrugate, wood, foam and metal packaging materials to ensure compliance and protection. We also offer turnkey services including kitting, labeling and documentation.
Corrugated Boxes for Military Equipment
General Packaging Corporation is your compliant government packaging supplier. When you need durable military packaging solutions to meet or exceed government standards, you can rely on our team to craft the right solution. Whether you need Type l compliant boxes or custom foam packaging for military applications, we’ve got you covered.
Contact our packaging experts for a quote.
